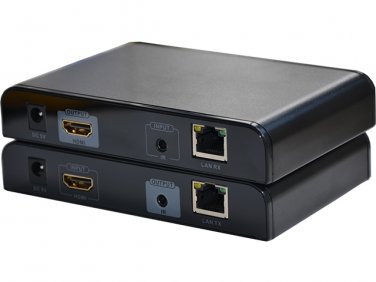

Free shipping&wholesale IR HDMI extender with IR over lan cable up to 100m 1pc/lot
This is the complete solution to solve the image mosaic, color distortion, transmission failure and other problems when HDMI signal long distance transmitted. It's the professional signal transmission system which combines the function of HDMI signal conversion, reception and reduction and designed for high quality HDMI video signal long-range extension of display system project, such as Big screen curtain wall advertising project, Industrial automatic control, Armamentarium, CCTV, Multi-media instruction and so on.
Application:
LCD and plasma flat panel multimedia advertising project
Big screen LED curtain wall display project
The large projection equipment display system
The industrial automation and control system
Audio/Video meeting system
Medical monitoring system
Security monitoring system
Multimedia network education system
Long-distance network server monitoring
Central control system
Military exercises command system
Specification:
Input port
HDMI: 480i@60Hz">, 480p@60Hz">, 576i@50Hz">, 576p@50Hz">, 720p@50/60Hz">, 1080i@50/60Hz">, 1080p@50/60Hz">;
Output port
HDMI: 480p@60Hz">, 576p@50Hz">.720p@50/60Hz">, 1080p@50/60Hz">;
The video color format supported: 24bit/Deep color 30bit/ deep color 36bit
Audio format supported: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Transmission rate supported: 10.2Gbps
Dimension: 13*8.5*2.4 cm
Weight: TX: 204g, RX: 204g
Contains:
1 x HDMI Extender Sender
1 x HDMI Extender Receiver
1 * Infrared Emission Extension Cord
1 * Infrared Receiving Extension Cord
2 x Power Supplier
